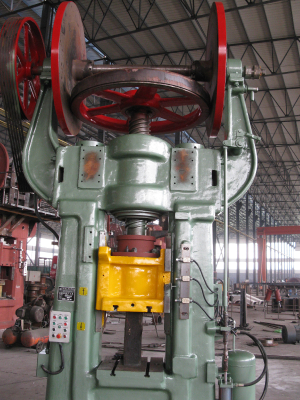

J53-300 SS cultery forging press,double disc friction screw press

J53-300 SS cultery forging press,double disc friction screw press

  • Min.Order Quantity: 1 Set
  • Supply Ability: 30 Sets per Month
  • Port: qingdao
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1995-02-10
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1820*2581*4345mm
  • Place of Origin:  China,Shandong
  • Brand Name:  JIAODUAN
  • Model Number:  J53-300
  • Weight: 12800.000 kg

J53-300 SS cultery forging press,double disc friction screw press



1.Use, Scope of use and feature

This press is a special pressing device and can be widely used all kinds of pressing industries. In machinery industry, it can finish blanking, bending, correction, precision pressing and punching in forging process.

The press has all purpose in use, simple in structure, assembly operation and auxiliary equipment and its price is very lower, so it can be widely used in pressing shop, forging shop and die forging shop for machinery manufacturing, auto, tractor aviation and also does pressing work of refractory material.

The press has the following characteristics:

1)  Electric system adopts the reliable relay to do logic control

   and has reasonable control circuit, reliable operation

2)   The press can realize single blow and continuous blow

3)   The press adopts hand hydraulic control, and its operation has

Sensitive and reliable

4)  There is the cushion equipment under the  crossbeam ,when the

    break is out of order ,it can reduce impact to protect the

    device



2.Technical Specifications

1)Nominal press                                    3000KN

2)Energy                                           20KJ

3)Stroke of Slide                                  400mm

4)Time of stroke                                   15/min

5)Min. closed height                                300mm

6)Working surface of table (L.R×F.B)              650×570mm

7)Bottom  surface of slide (L.R×F.B)              520×485mm

8)Stoke of ejecting                                120mm

9)Power of main motor                              22KW

10)Power of oil pump motor                         1.5KW

11)Overall dimension (L.R×F.B)              1820×2581×4345mm

12)Machine weight                                  12800kg


  • Size:  1820*2581*4345mm
  • Place of Origin:  China,Shandong
  • Brand Name:  JIAODUAN
  • Model Number:  J53-300
  • Weight: 12800.000 kg

2.Technical Specifications

1)Nominal press                                    3000KN

2)Energy                                           20KJ

3)Stroke of Slide                                  400mm

4)Time of stroke                                   15/min

5)Min. closed height                                300mm

6)Working surface of table (L.R×F.B)              650×570mm

7)Bottom  surface of slide (L.R×F.B)              520×485mm

8)Stoke of ejecting                                120mm

9)Power of main motor                              22KW

10)Power of oil pump motor                         1.5KW

11)Overall dimension (L.R×F.B)              1820×2581×4345mm

12)Machine weight                                  12800kg
