- Size: 1.84 X 1.29 X 1.89m
- Place of Origin: China
- Brand Name: LPMIE
- Model Number: DXDC15
- Weight: 1210.000 kg
Description:

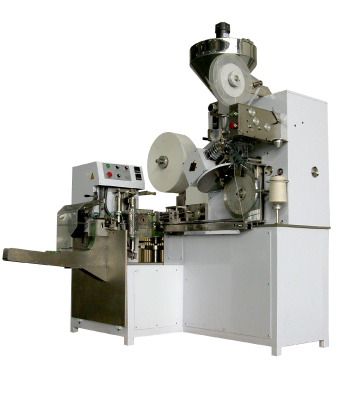

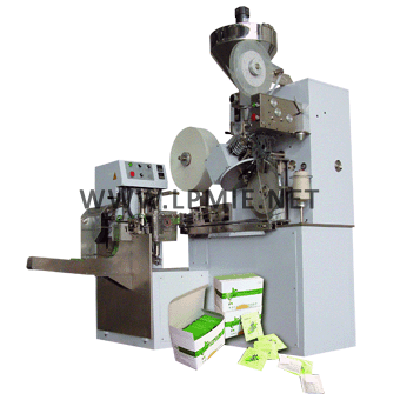

Tea-bag Packing Machine is an automatic precision machine use for packing broken tea and similar herbs into small bags and realize fully automatic procedure including ration filling, heat-sealing of tea bag, pasting thread, linking tag, envelope sealing, dividing groups and counting tea bag. Our company has developed multi-types of Tea-Packing Machine (e.g. Model CCFD6, Model DXDC8I, Model DXDC8II, and Model DXDC8IV) which based on advanced technology in the domestic and overseas trade and has reached the same level of imported equipment; furthermore some performances have exceeded this level.
Tea bag packing machine Model CCFD6 features such functions as automatic ration filling, heat-sealing of tea bags, automatic plastering of cotton thread
and tags, and cold-sealing of the envelope in the longitudinal direction.
Technical data: 1) Max. output: 105±5bags/minute Packing material consumption 1)Filter paper: 7500kg |
- Size: 1.84 X 1.29 X 1.89m
- Place of Origin: China
- Brand Name: LPMIE
- Model Number: DXDC15
- Weight: 1210.000 kg
Technical data:
1) Max. output: 105±5bags/minute
2) Max. dosage: 8cm3
3) Bag dimensions: 62.5 x 50mm
4) Envelope dimensions: 80 x 70mm
5) Tag dimensions: 28 x 24mm
6) Thread length: 210mm
7) Power supply: AC 380V / 220V
8) Total power: 2.36kW
9) Weight: 1210kg
10) Overall dimensions: 1.688 x 1.33 x 2.205m
11)Packing: 1pc/carton
Carton dimensions: 1.84 x 1.29 x 1.89m
Packing material consumption
1)Filter paper: 7500kg
2)Tag paper: 10000tags/kg
3)Thread: 20000bags/spool(4270m)
4)Vinayil: 70000bags/kg
5)Envelope paper: 2200bags/kg
Note:the consumption is collected from untransparent OPP 20/Pearl OPP 35 film. Other materials will be different
